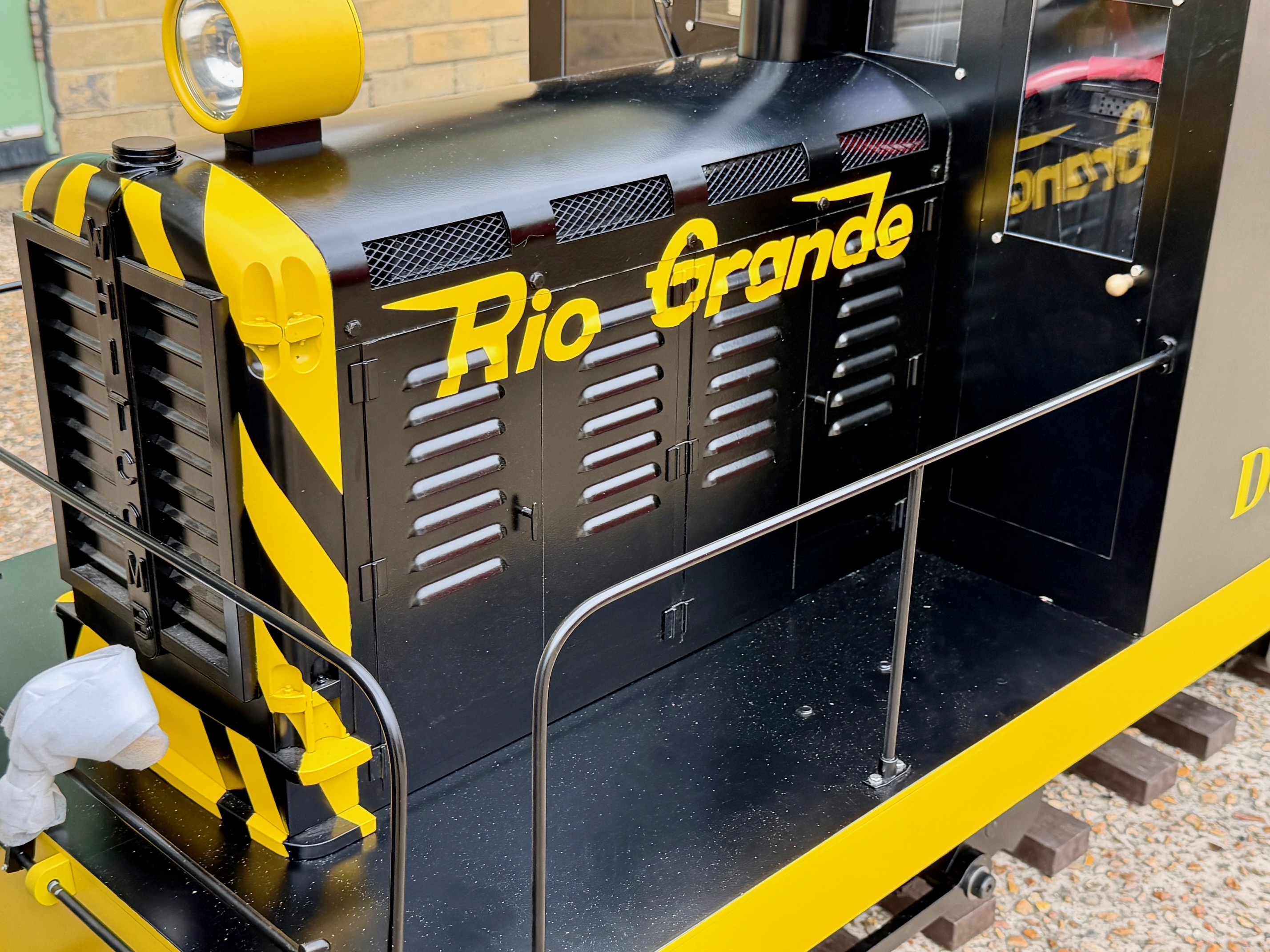

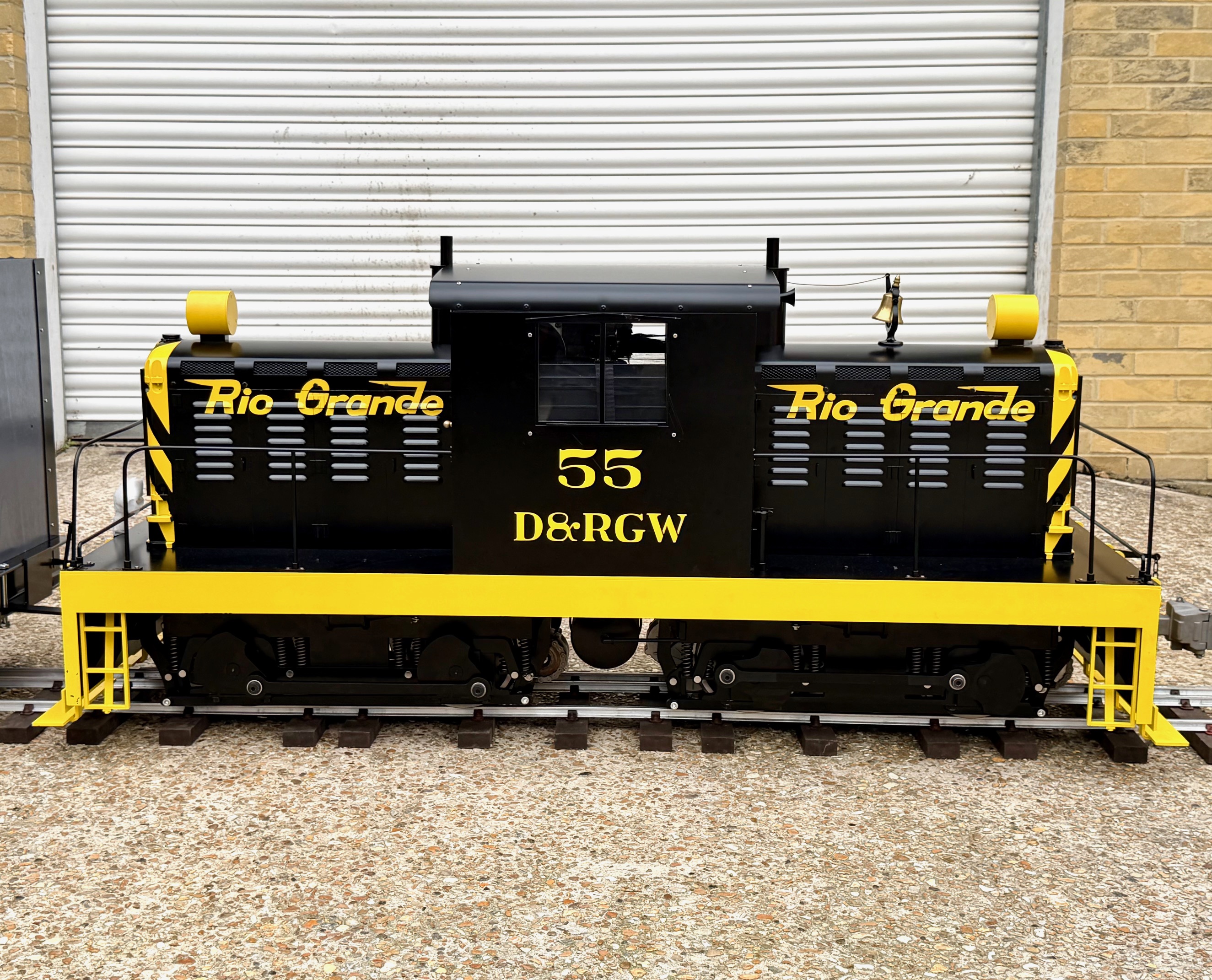

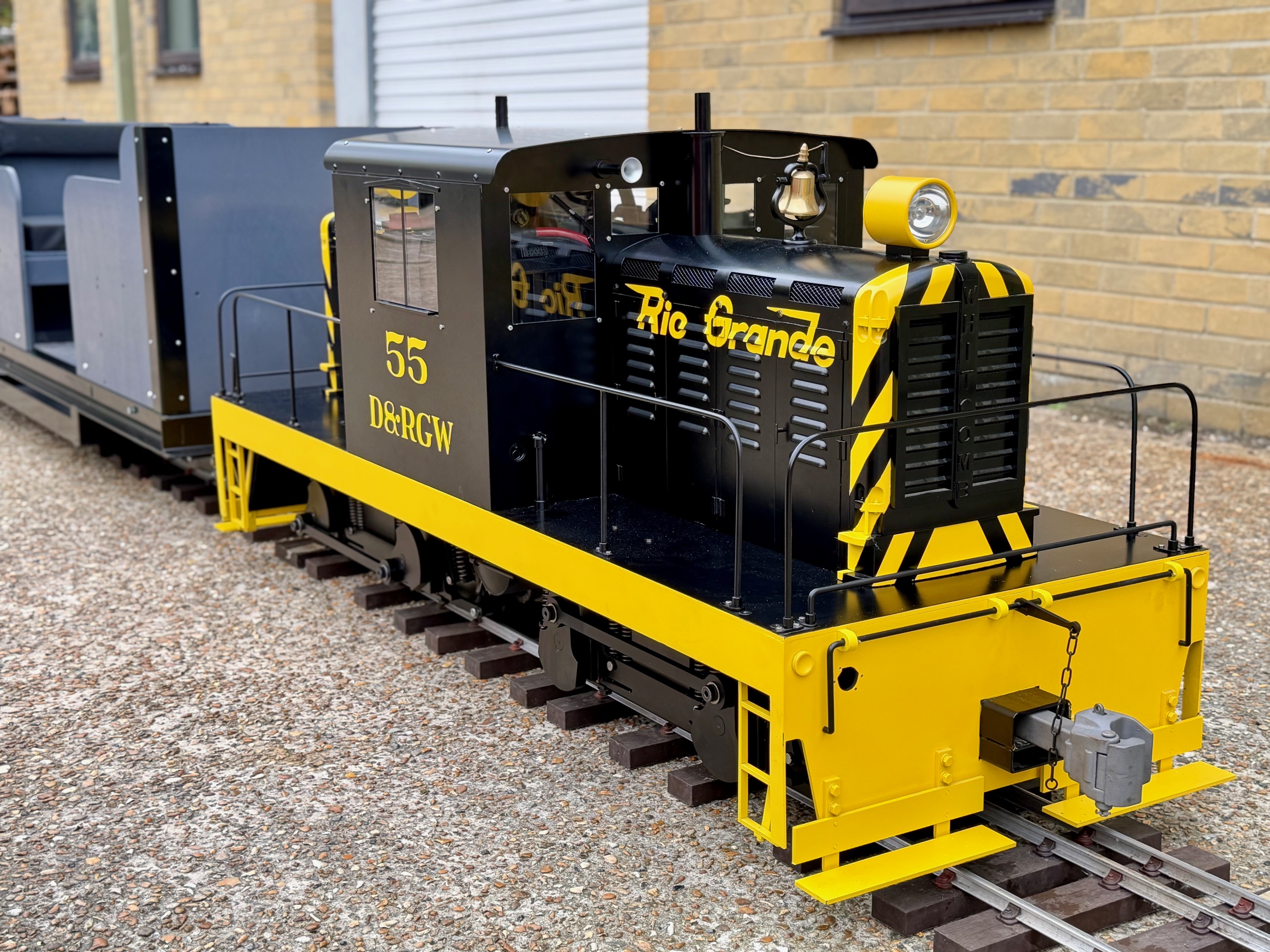

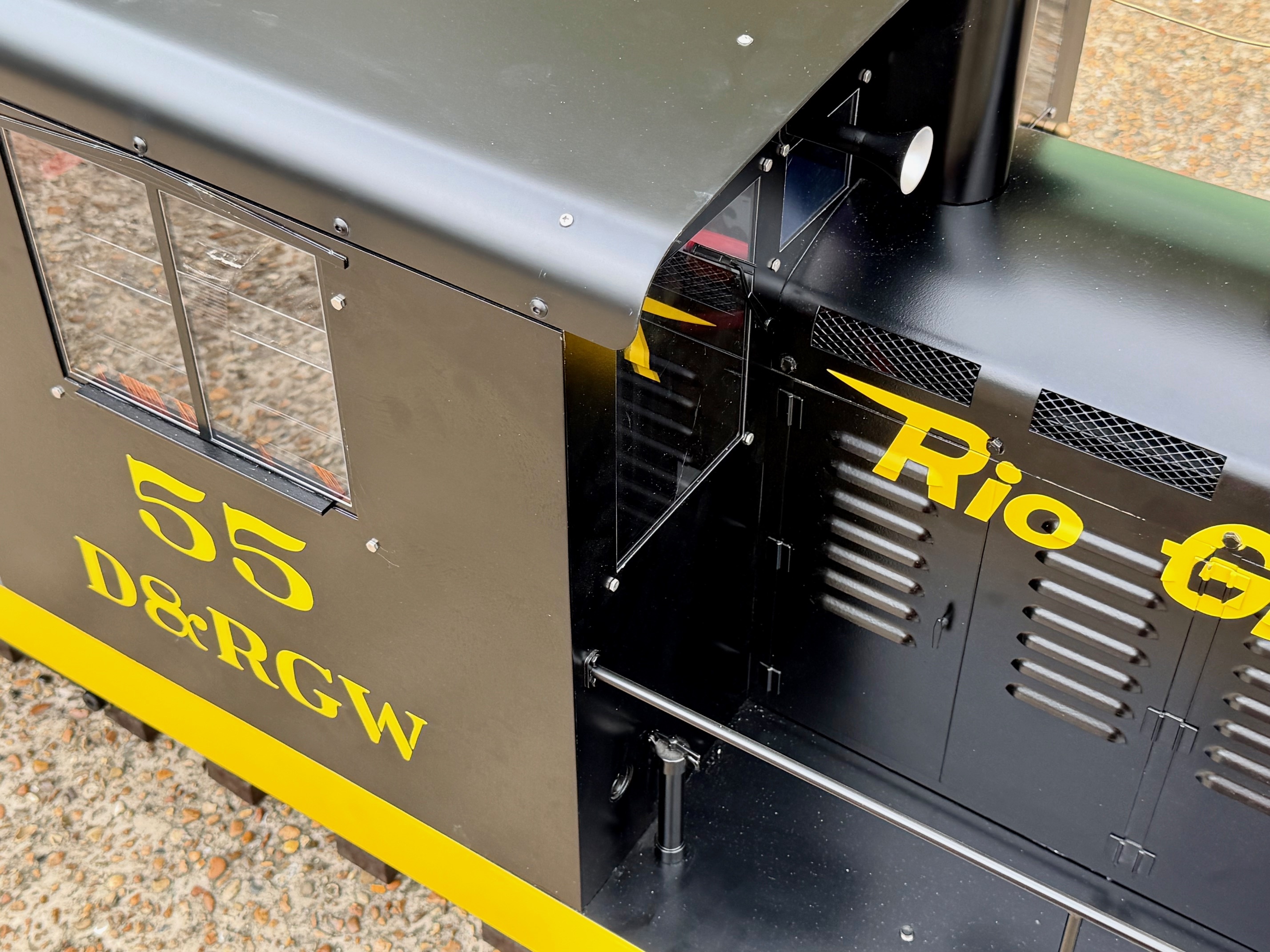

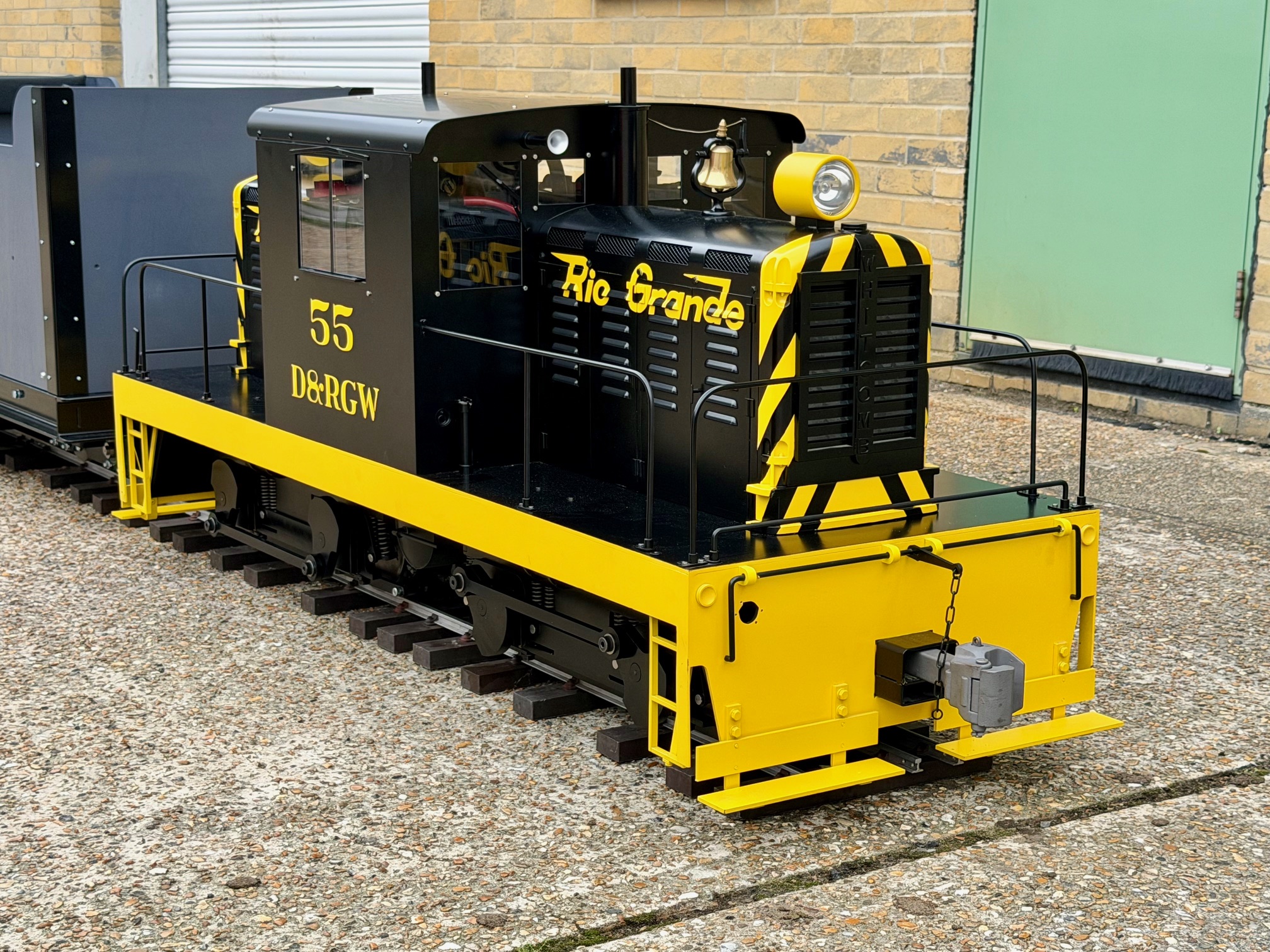

7 1/4 Inch Whitcomb

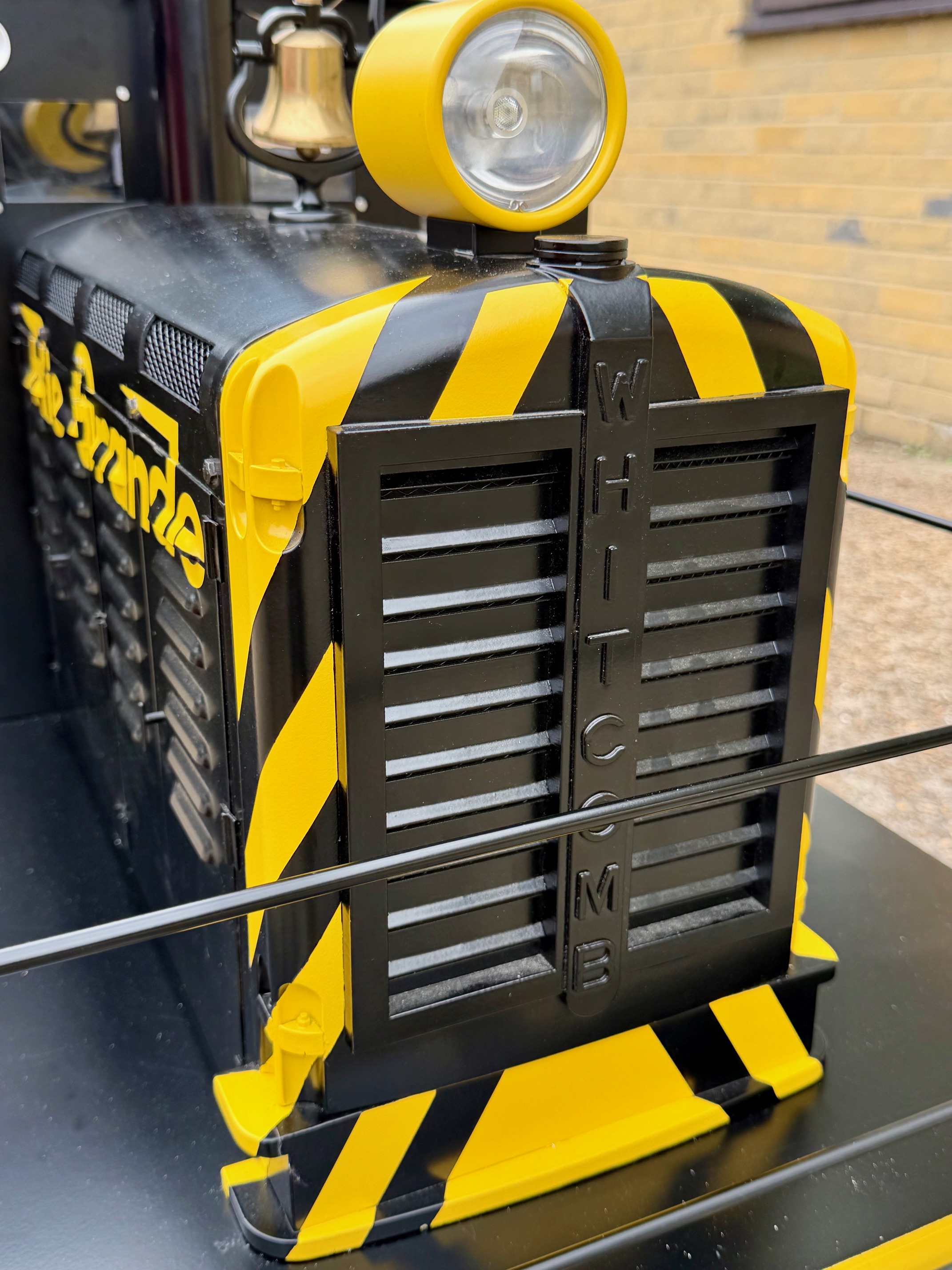

Whitcomb 45T Center Cab. Side-Rod Diesel Available in 7 1/4" Or 7 1/2" gauge

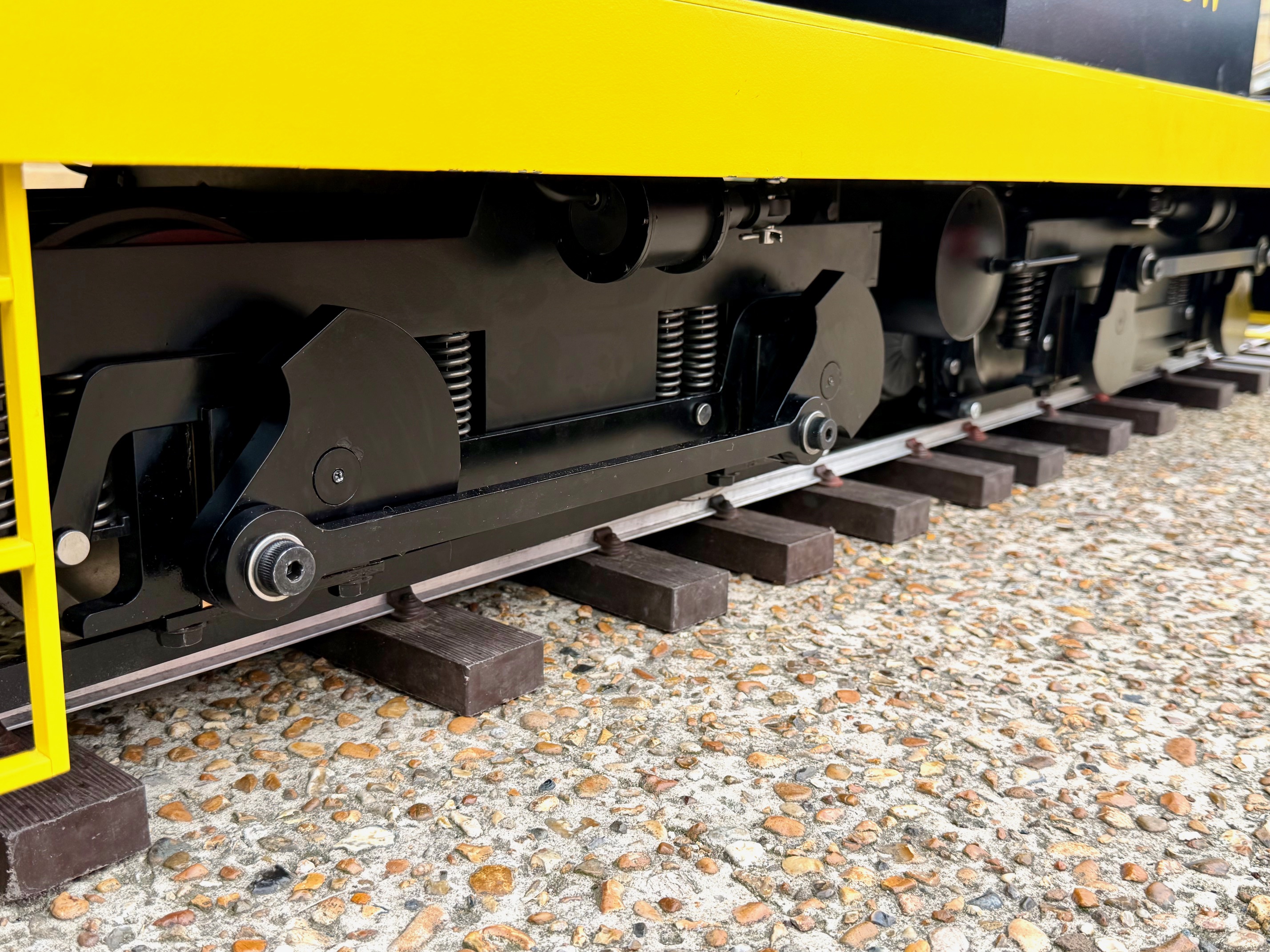

This model is supplied with two substantial powered bogies, with 4x 350 watt motors and motor breaking. With each bogie weighing a whopping 65kg it isn't an engine to be underestimated. Perfect for club running with a large haulage capacity. It can be adapted between a 2 or 4 battery set up making it ideal for those longer passenger hauling runs.

A choice of controller, radio control and optional sound system available at an additional cost.

2.5" Sharon couplers, Currently available in Black, Yellow, or Green with options for repainting or graphics at additional costs.

POWER VERSION: diesel outline Battery electric version,  This is a power version of this model, 2.8kw geared electric motors, 640Ah AGM battery pack, 4QD 360 pro controller, 2.4ghz RC, uprated springing and additional internal weights to get it up to 500kg (1/2 a ton). It's a serious set-up this one, she is one of a pair, made to do some serious haulage, 4 wagons, 20 persons plus with a twin failsafe braking systems, electrical on the locomotive, Vacuum on the coaches. Despite its size it can be completely stripped down to the bogies by just two persons for servicing. POA depending on spec.

PRICE: £From 9545

    Dimensions:

    Gauge - 7 1/4" Or 7 1/2" gauge

    Motors: 4 X 350watt geared motors with brake.

    Weight: 270kg dry weight

    Length: 195cm

    Width: 57cm

    Height: 75cm

    Bogie wheelbase: 36cm

    Whee3l Dia: 185mm

    Minimum radius: 30ft

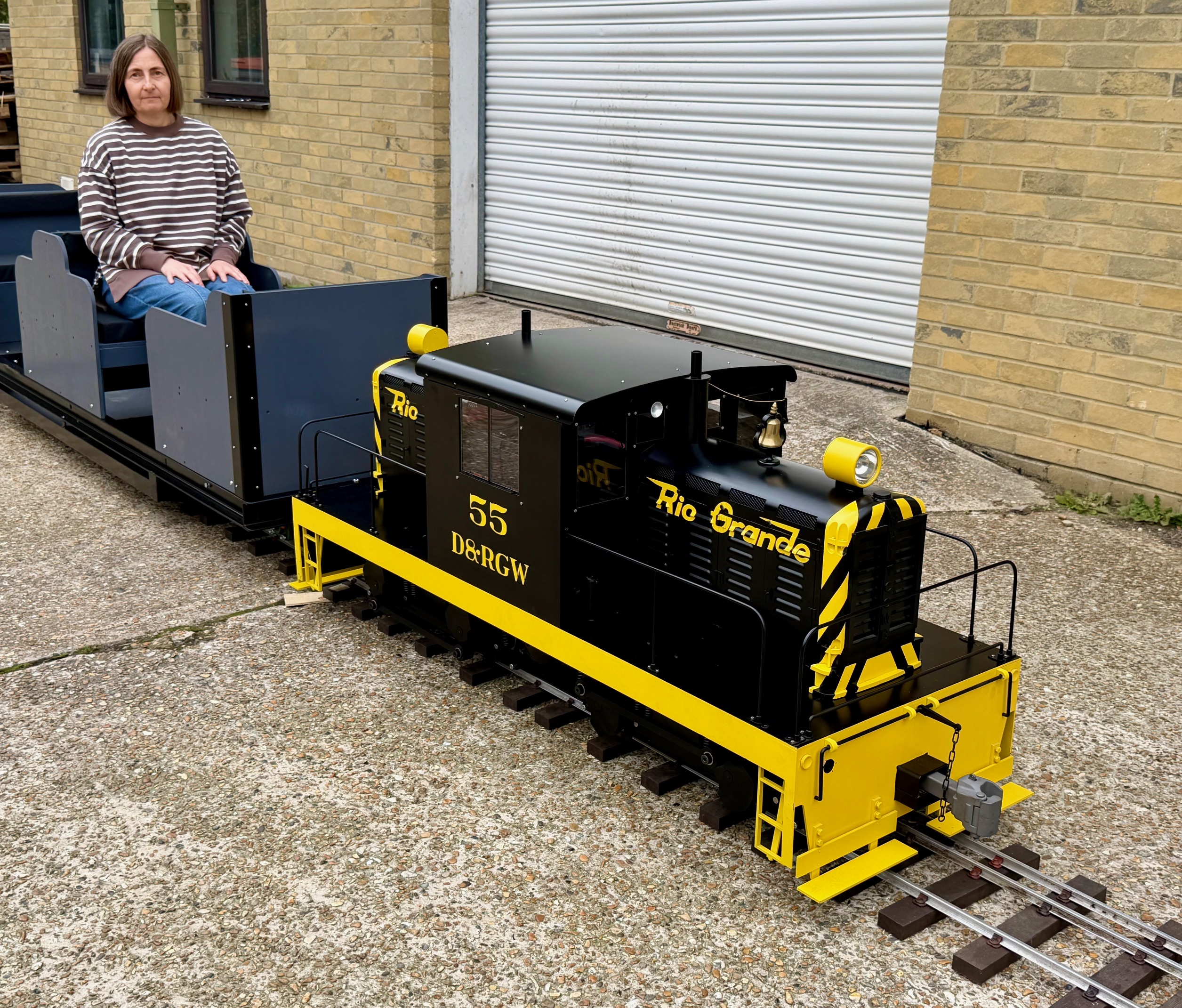

    Haulage capacity: 20+ persons (depending on setup)
