16mm Accucraft Ragleth

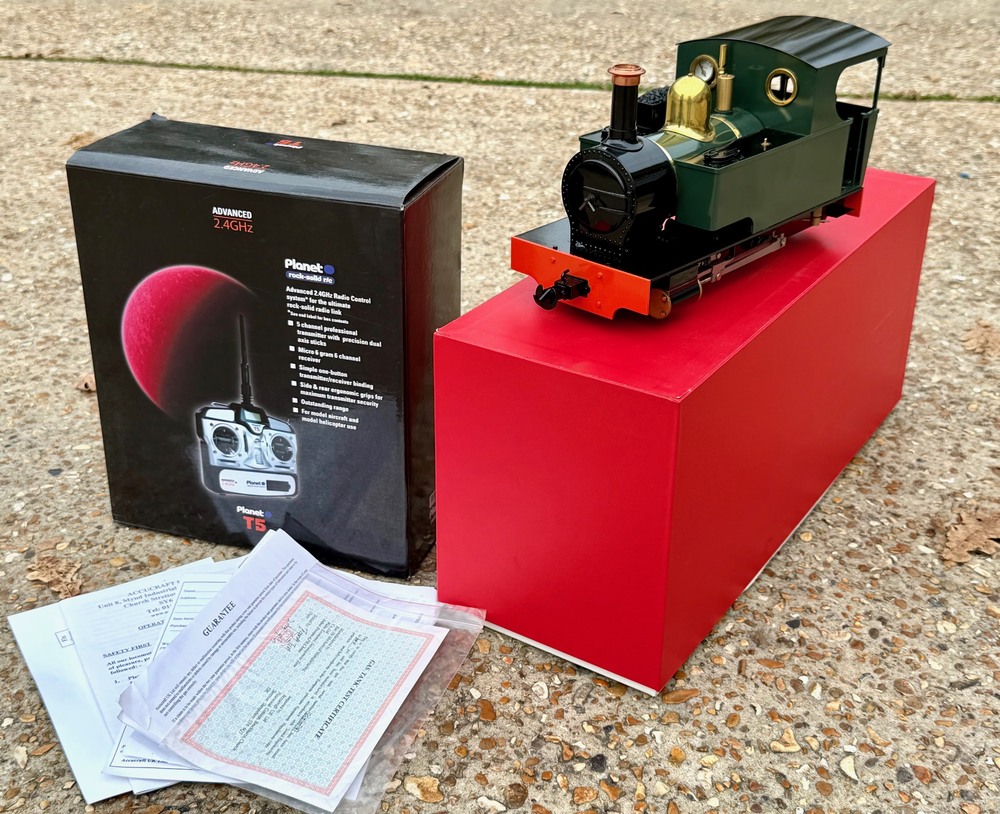

Accucraft 16mm Ragleth, second hand but looks practically unused, complete with original box and all paperwork. Has been set for RC but not tested, the loco itself has been tested by us and run on air in the workshop. A lovely opotunitly to get hold of a well liked and easy to use model.
Information from the Accucraft website on this now discontinued model:

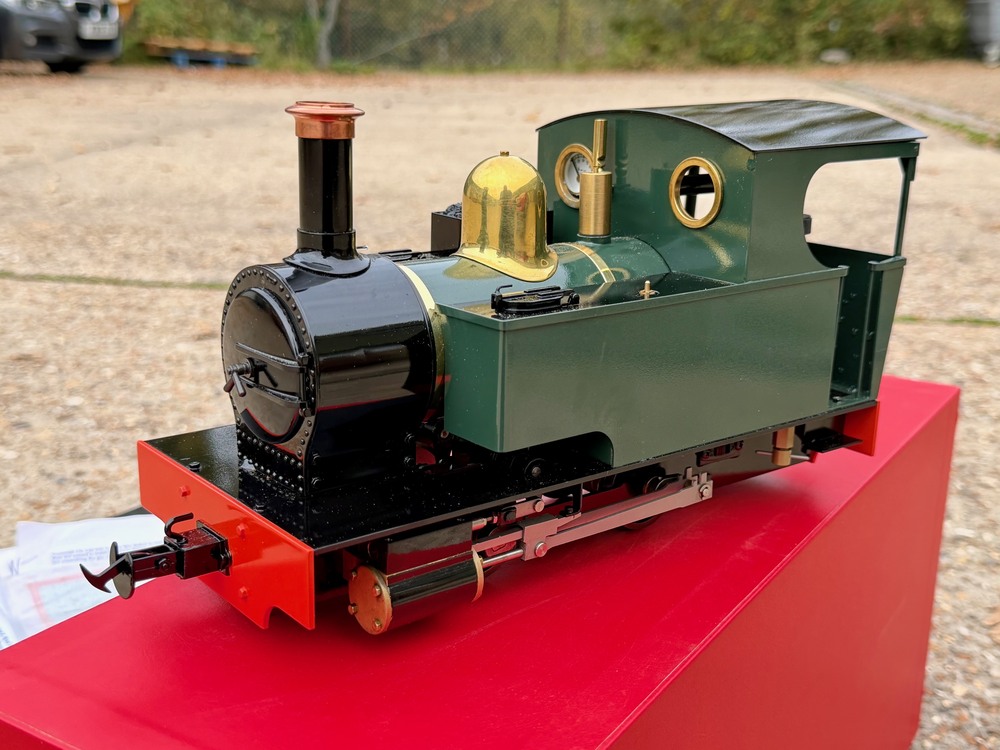

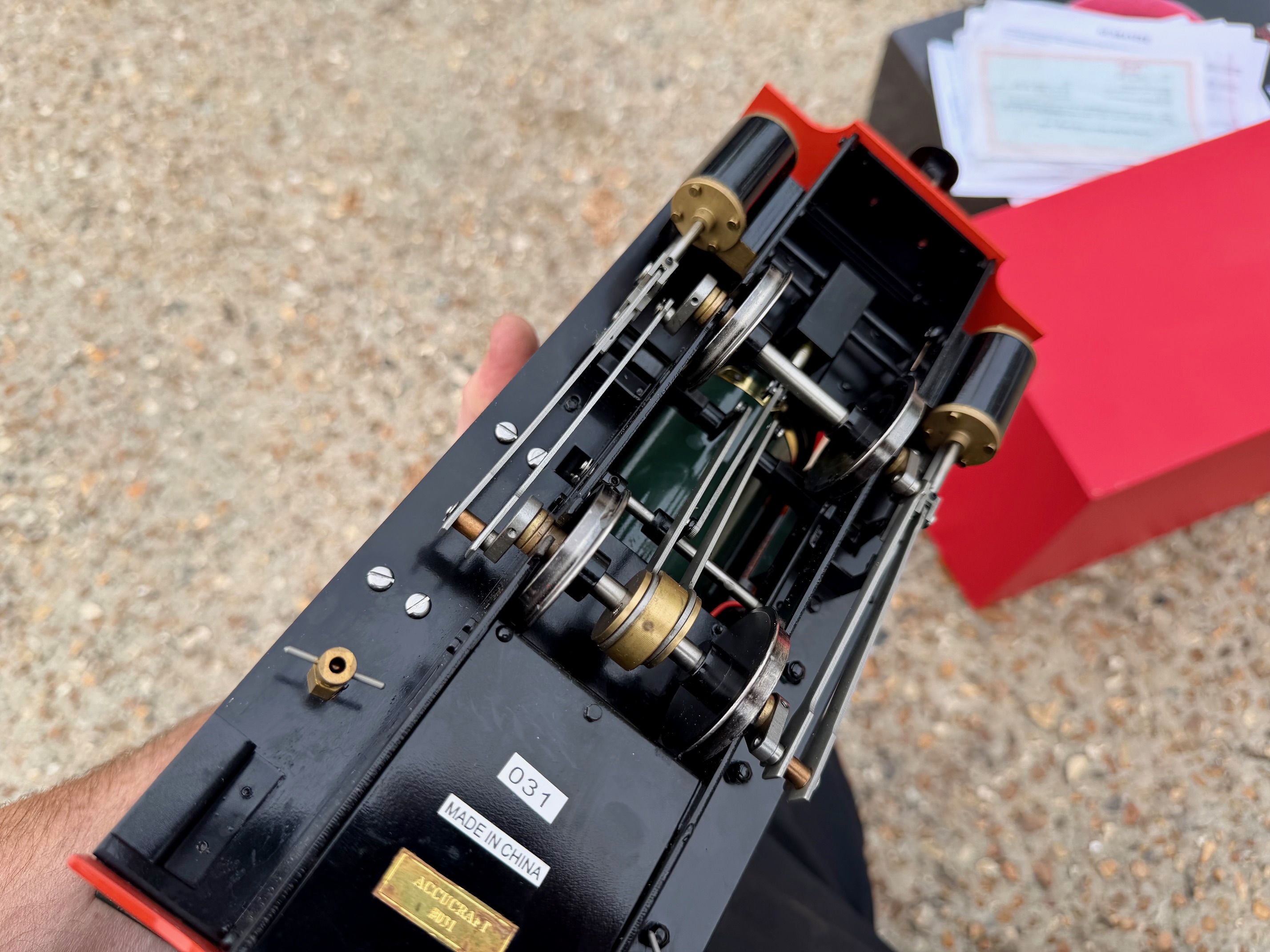

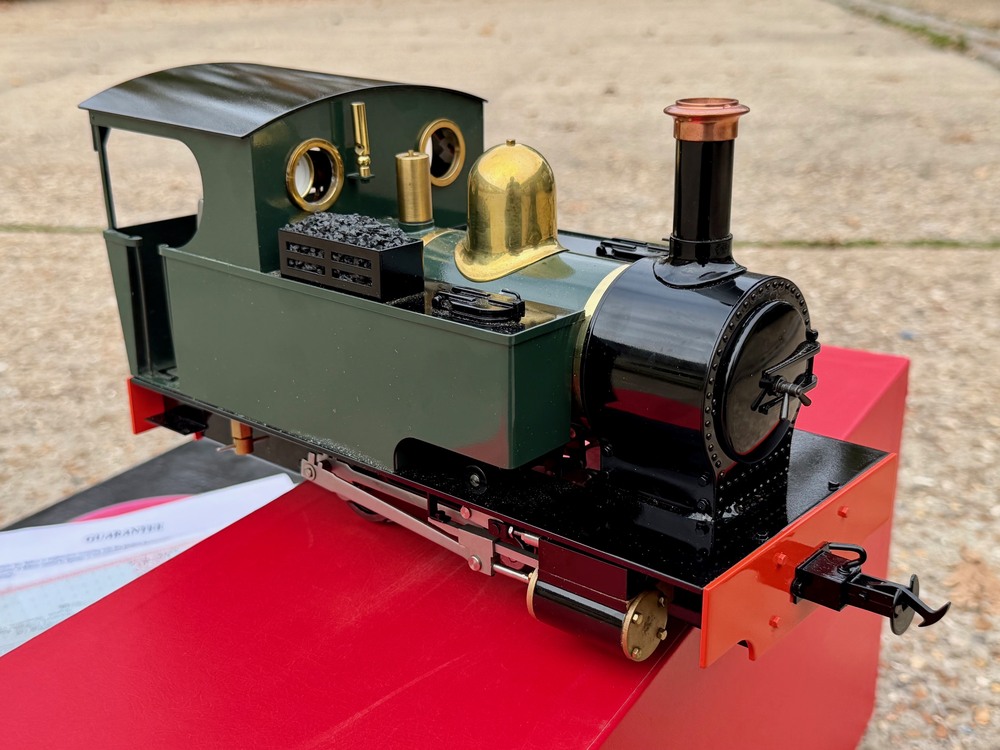

Ragleth is a freelance side tank locomotive with design inspirations from Manning Wardle. The loco is internally gas fired with a centre flue boiler. The model is gauge adjustable from 32mm (‘O’ gauge) to 45mm (‘1′ gauge) and has insulated wheels as standard. The axles run in bronze bearings and all the rods and valve gear are manufactured from stainless steel.
PRICE: £995
- REF:26235
- Scale: 16mm to 1 foot (1:19)
- Length: 262mm (10 ¼ ins)
- Gauge: 32mm or 45mm
- Width: 116mm (4 ⅝ ins)
- Min Radius: 0.6M (24 ins)
- Height: 160mm (6 ¼ ins)
- Weight: 4.1 kg (9lbs)
- Boiler: Centre Flue
- Working Pressure: 60psi
- Reversing Gear: Piston type, reverse by lever in the cab
- Fuel: Butane Gas
- Valve Gear: Simulated Stephenson’s link
- Boiler Fittings: Safety valve, pressure gauge, water level check valve.

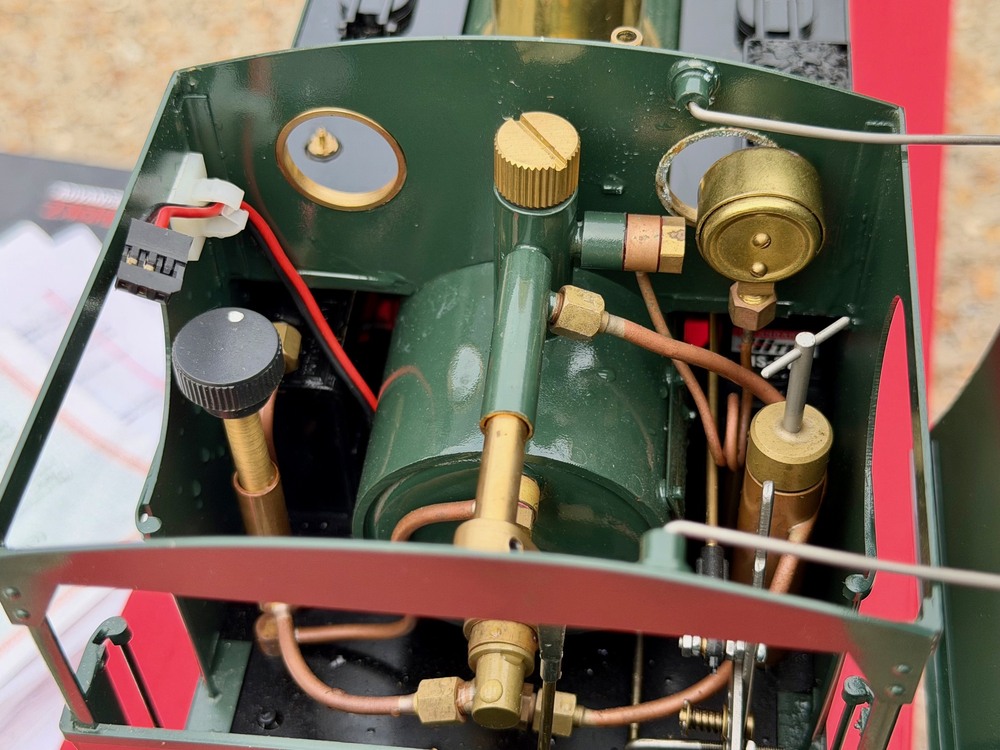

- Cab Controls: Steam regulator, gas regulator, reverser, lubricator drain valve,water level check valve.
Dimensions:
Specifications:
